Cartridge Filter Housing

Filtcare make Cartridge Filter Housings are used for a wide variety of fluids handling various flow capacities. We provide filter housings which can handle flow capacity from 01 M3/Hr to 2000 M3/Hr. Cartridge Filter Housings are used in various process industries. Cartridge Filter Housings are made up of MOC Mild Steel, Stainless Steel, Carbon Steel, Internal Rubber Lined or any specific coating.

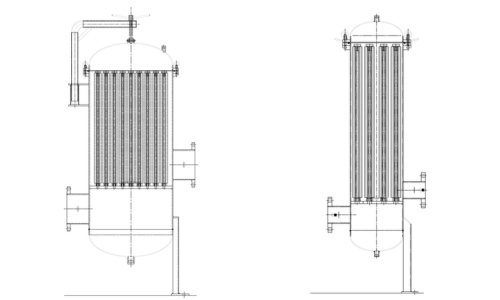

Cartridge Filter Housing Drawing
Technical Specifications

  • Diameter options: 2.5”, 4”, 6” or fully customized diameters
  • Length options: 10”, 20”, 30”, 40”, 50”, 60”, or custom lengths available
  • Capacity Range: From 1 M3/hr to 2000 M3/hr, suitable for varied industrial scales
  • Gasket/O-Ring Materials: Neoprene, Viton, Buna-N, Nitrile, EPDM, PTFE, Spiral Wound options for chemical compatibility and sealing integrity
  • Material of Construction (MOC):Stainless Steel: SS 316L, SS 316, SS 304, Carbon Steel (all grades), Mild Steel, Polypropylene, Lead Lining, Rubber Lining, Teflon Lining
  • Types of End Connections: Flanged ANSI B 16.5, BSP, NPT, DIN Standard, Tri Clover Adaptors, SMS Union, Dairy Fittings, PN Standards for universal compatibility.

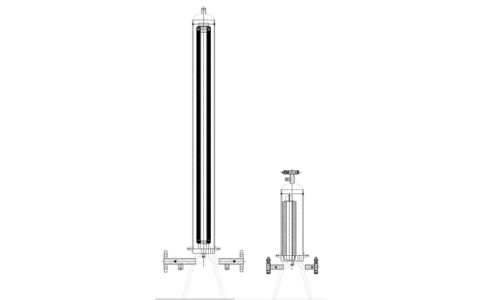

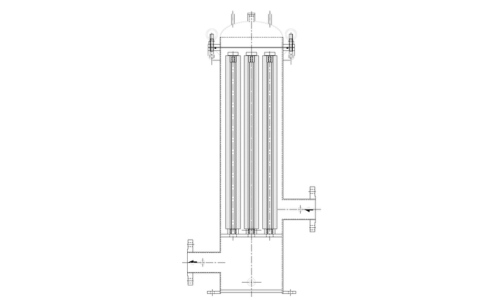

Stainless Steel Filter Housing Drawing
Features & Benefits

  • Handles flow rates up to 2000 M3/hr, accommodating large-scale industrial demands
  • High dirt holding capacity with custom designs tailored to specific flow rates
  • Available in premium materials like SS 304, SS 304L, SS 316, SS 316L, Duplex SS 2205 for durability and corrosion resistance
  • Compatible with Double Open End (DOE), Single Open End (SOE), and flanged type filter cartridges
  • Can house filter cartridges of sizes: 10", 20", 30", 40", 50", 60", or customized lengths
  • Designed for high temperature and high pressure environments; also available in jacketed systems for thermal management
  • User-friendly features like easy operation, low maintenance requirements, and designs with Davit Arm or Quick Opening for convenient access and replacement.

Stainless Steel Cartridge Filter Housing
Applications

  • Water Treatment
  • Pharmaceuticals
  • Dyes and Intermediates
  • Food and Dairy Beverages
  • RO Pre filtration
  • Chemicals
  • Bore well water
  • Industrial / Edible oil

Cartridge-Filter-Housing
Frequently Asked Questions About Cartridge Filter Housings
What is a Cartridge Filter Housing?

It is a durable container designed to hold cartridge filters securely during liquid or gas filtration, protecting the filter and ensuring efficient contaminant removal.

What materials are cartridge filter housings made from?

They are typically made from stainless steel, carbon steel, or PVC, depending on the application and chemical compatibility required.

What sizes and configurations are available?

Cartridge filter housings come in various sizes to fit standard filter cartridges, with single or multiple cartridge configurations to match different flow rate requirements.

Where are cartridge filter housings used?

They are widely used in water treatment, pharmaceuticals, food and beverage, chemical processing, and industrial filtration systems.

How do they ensure filtration efficiency?

The housings provide a sealed environment to prevent leaks, maintain pressure, and support the cartridges to maximize filtration performance.

Why choose Filtcare Cartridge Filter Housings?

Filtcare offers high-quality, robust housings built for longevity, ease of maintenance, and compatibility with a wide range of industrial and commercial filtration needs.

The cartridge filter housing is a critical component of industrial and commercial filtration systems. It plays a vital role in removing contaminants and impurities from liquids and gases, ensuring clean and safe processes in various industries. In this article, we will explore the importance of cartridge filter housing, its functions, and its benefits in filtration applications.

What is Cartridge Filter Housing?

A cartridge filter housing, also known as a filter vessel or filter housing, is a chamber or enclosure that holds a cartridge filter element. The housing is designed to provide a secure and sealed environment for the filter cartridge, allowing the fluid or gas to pass through while capturing and retaining contaminants.

Functions of Cartridge Filter Housing

Contaminant Removal: The primary function of a cartridge filter housing is to facilitate the removal of impurities, solids, debris, sediments, or contaminants from the fluid or gas being filtered. The filter housing holds the cartridge filter, which traps and retains particles of various sizes, ensuring that the effluent meets the desired quality standards.

Protection of Equipment and Processes: Cartridge filter housing acts as a protective barrier for sensitive equipment and processes downstream. By capturing and removing contaminants, it prevents the particles from causing damage or obstruction to pumps, valves, heat exchangers, and other critical components in industrial systems.

Extended Filter Life: The housing provides support and structural integrity to the cartridge filter, extending its lifespan. It prevents the filter element from collapsing or being damaged due to pressure differentials, ensuring optimal performance and efficient filtration over an extended period.

Benefits of Cartridge Filter Housing

Versatility and Compatibility: Cartridge filter housing is compatible with various filter cartridge types, including depth filters, pleated filters, membrane filters, activated carbon filters, and specialty media filters. This versatility allows businesses to choose the appropriate filter cartridges based on their specific filtration requirements and applications.

Ease of Installation and Maintenance: Cartridge filter housing is designed for easy installation, maintenance, and replacement of filter cartridges. Many housings feature quick-open closures or swing bolts, allowing for convenient access to the filter element. This simplifies maintenance tasks, such as replacing cartridges or cleaning the housing, reducing downtime and operational disruptions.

Scalability and Customization: Cartridge filter housings come in various sizes, configurations, and materials to accommodate different flow rates, pressures, and temperatures. They can be customized to meet specific application requirements, ensuring optimal filtration performance and compatibility with existing systems.

Efficiency and Filtration Performance: Cartridge filter housing provides a controlled and uniform flow path for the fluid or gas being filtered, enhancing filtration efficiency. It ensures that the contaminants are evenly distributed across the filter media, maximizing the filter's capacity and capturing particles effectively. This results in high-quality filtrate and improved filtration performance.

Cost-Effective Filtration Solution: Cartridge filter housing offers a cost-effective filtration solution for many industries. It provides reliable and consistent filtration, reducing the need for frequent equipment maintenance, repairs, and replacement. Additionally, cartridge filter housings are designed for durability, with options for corrosion-resistant materials, prolonging their lifespan and reducing long-term operational costs.

Cartridge filter housing is an essential component of filtration systems, ensuring the removal of contaminants and impurities from liquids and gases in various industries. With its functions of contaminant removal, equipment protection, and extended filter life, cartridge filter housing plays a critical role in maintaining efficient and clean processes. The versatility, ease of installation and maintenance, scalability, efficiency, and cost-effectiveness of cartridge filter housing make it an indispensable tool for businesses seeking reliable and high-performance filtration solutions.
